K040007

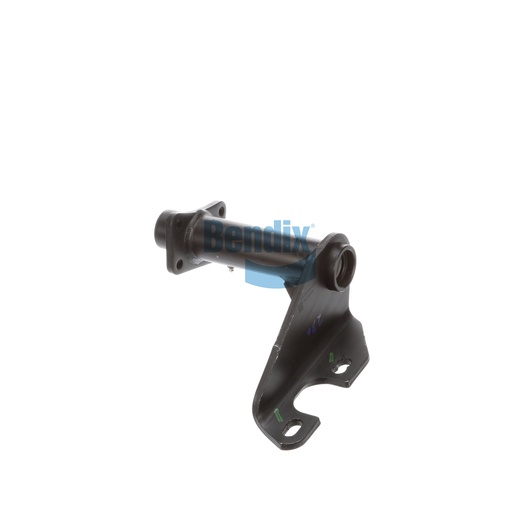

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is engineered to provide exceptional support for your vehicle's drum brake components. With a full arm style and high-quality nylon bushings, this assembly minimizes wear while maintaining the integrity of your braking system. Designed for reliable performance, it features a camshaft bracket angle of 66° CCW, ensuring optimal positioning for efficient braking. Weighing 12.8 lb, this assembly is lightweight yet robust, facilitating easy installation. Its adjustable slack length of 5.50 to 6.00 inches allows for flexibility in various setups, making it an ideal choice for any commercial vehicle. The Bendix Bracket Assembly is essential for maintaining effective braking power and safety on the road. At Source One Parts Center, we offer genuine Bendix OEM parts, ensuring your vehicle remains roadworthy and safe.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.25
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
66° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.8 lb
