K040008

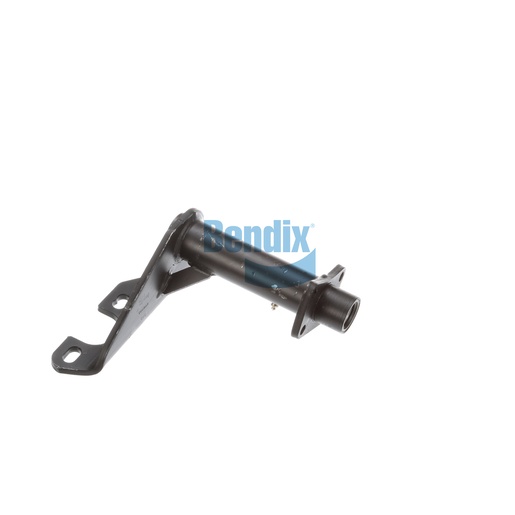

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
This Bracket Assembly is an integral part of the Bendix Foundation Drum Brakes system, designed to provide crucial support and stability during operation. Constructed with a single gusset design, it boasts a robust arm style that enhances durability under load. The nylon bushings used both inboard and outboard facilitate smooth movement and reduce wear, ensuring that your braking system functions optimally. With a camshaft bracket angle of 66° CW and a slack length range of 5.50 to 6.00 inches, this assembly is engineered for versatility and ease of installation. Weighing only 12.82 lbs, it is both strong and lightweight, making it a top choice for maintenance and repair. Source One Parts Center is your go-to destination for genuine Bendix OEM parts, guaranteeing quality and performance for your commercial vehicle.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.25
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
66° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.82 lb
