K040016

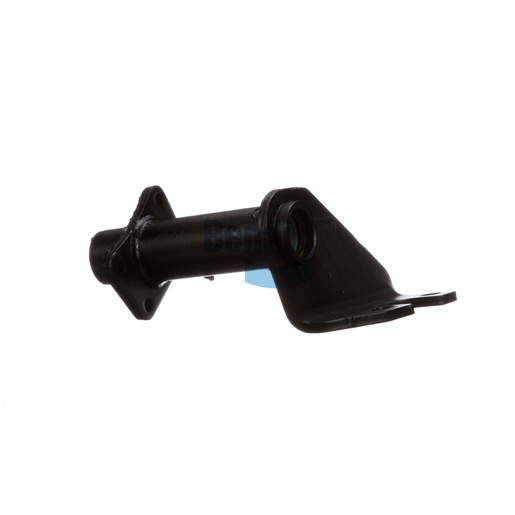

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is a vital support structure within your truck's drum brake system. This assembly is designed to provide the necessary stability for air chambers and camshafts, ensuring optimal brake performance. With features such as nylon bushings and a full arm style, it is engineered for durability and longevity, reducing maintenance needs over time. The adjustable slack length and camshaft bracket angle of 80° CCW offer flexibility for various configurations, making it suitable for a wide range of vehicles. The assembly is lightweight yet robust, contributing to the overall efficiency of the braking system. For those seeking high-quality Bendix OEM parts, Source One Parts Center is the best place to find reliable components for your commercial vehicles.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.92
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
80° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
12.51 lb
