$599.95
$719.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

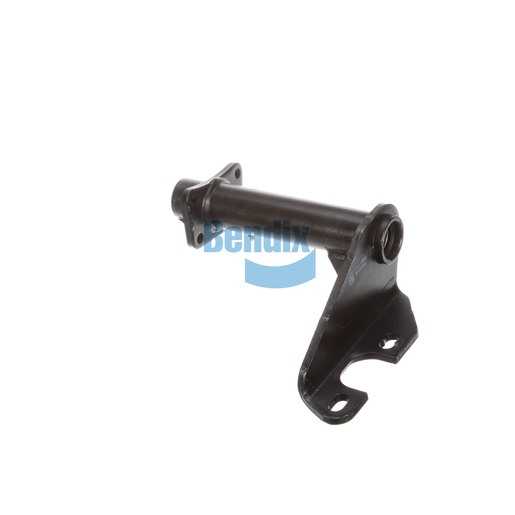

The Bracket Assembly is a vital component for Bendix Foundation Drum Brakes, built to provide robust support for air chambers and camshafts. Designed with a full arm style and a single gusset, this assembly ensures maximum stability and durability under heavy loads. The nylon bushings on both the inboard and outboard ends enhance performance by reducing friction and wear, which is crucial in demanding environments. With a camshaft bracket angle of 80° CW and a centerline length of 11.92 inches, this part is engineered for precise fitment and smooth functionality. Ideal for commercial vehicles that require reliable brake support, Source One Parts Center delivers genuine Bendix OEM parts that guarantee top performance.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.92
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
80° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
