K040021

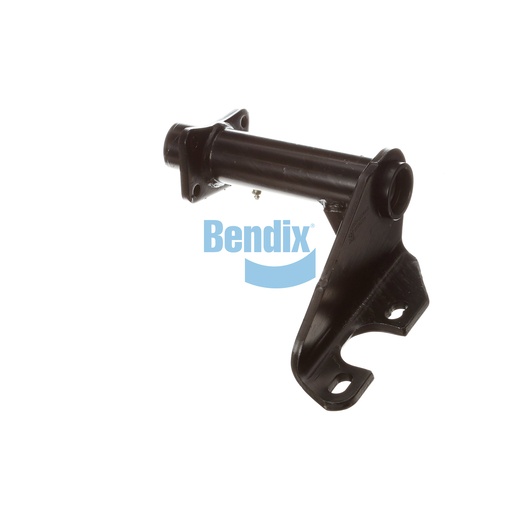

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is a vital part of the foundation drum brake system, ensuring the stability and performance of your vehicle's braking mechanism. This assembly boasts a robust design with a single gusset and nylon bushings, providing durability and exceptional resistance to wear. Weighing in at 0.0 kg, it’s lightweight yet strong enough to handle the demands of heavy-duty applications. The camshaft bracket angle of 86° CW allows for precise alignment, ensuring efficient brake operation and improved vehicle safety. Ideal for both maintenance and upgrades, this Bracket Assembly ensures that your braking system functions reliably under various conditions. For the best selection of authentic Bendix OEM parts, Source One Parts Center is the trusted choice for commercial vehicle operators.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
12.81
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
86° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
