K040023

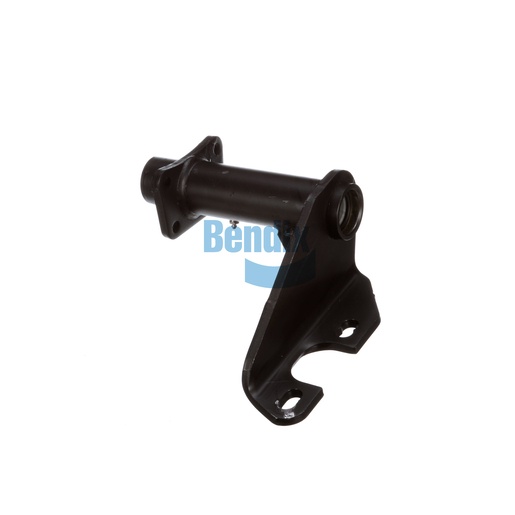

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly from Bendix is vital for ensuring the stability and performance of your drum brake system. Designed with a full arm style and single gusset, this assembly provides robust support and durability under heavy loads. Its nylon bushings enhance wear resistance, making it an ideal choice for commercial applications where reliability is crucial. The camshaft bracket angle of 66° CW allows for precise adjustments, ensuring that your braking system operates smoothly and effectively. With a slack length ranging from 5.50 to 6.00 inches, it is versatile enough to fit various applications, offering flexibility in installation. This bracket plays a crucial role in maintaining the integrity of your vehicle's braking system, enhancing safety on the road. Source One Parts Center is your best resource for genuine Bendix OEM parts, ensuring that your commercial vehicle is equipped with the highest quality components available.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.25
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
66° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
