K040025

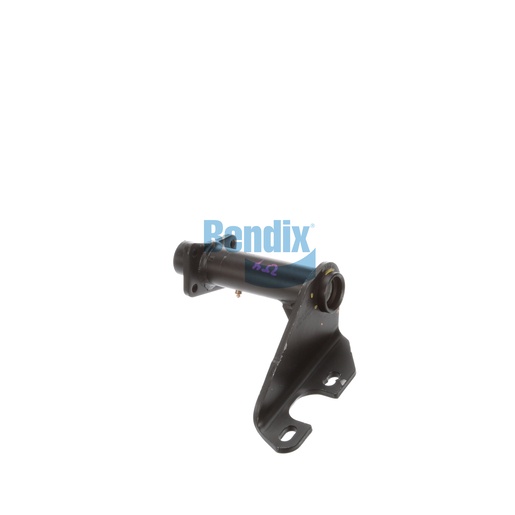

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is a crucial component that supports the foundation drum brake system in commercial trucks. With its robust construction, this assembly is designed to withstand the extreme conditions encountered in heavy-duty applications. Weighing in at 5.8 kg, it combines strength and durability, ensuring reliable performance over time. The precision engineering of this bracket ensures seamless integration with other brake components, allowing for efficient braking and enhanced vehicle control. This assembly is not just a replacement part; it is a vital component that contributes to the safety and performance of your truck. By choosing Source One Parts Center, you can be confident that you are purchasing genuine Bendix OEM parts that ensure the best fit and functionality for your commercial vehicle.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Camshaft Bracket Angle
12° CW
Length (Centerline to Centerline) [IN]
21.50
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.77 lb
