K040052
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

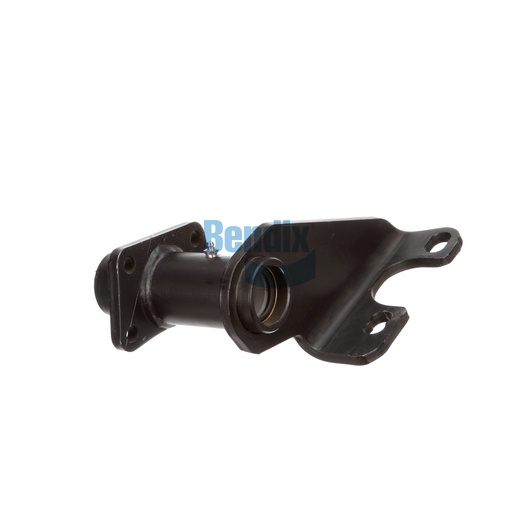

The Bracket Assembly from Bendix is vital for the performance and stability of your foundation drum brakes. Featuring a single gusset design and a scalloped arm style, this assembly is built for strength and durability, making it ideal for heavy-duty applications. With nylon bushings that enhance wear resistance, this bracket ensures a longer lifespan and reliable performance. Its camshaft bracket angle of 292° CW allows for precise adjustments, ensuring that your braking system operates effectively and efficiently. With a slack length between 5.50 and 6.00 inches, it can fit a variety of setups, making installation and replacement straightforward. This assembly plays an essential role in maintaining the integrity of your braking system. Source One Parts Center is the best place to purchase genuine Bendix OEM parts, ensuring you have the best components for your commercial vehicle.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Camshaft Bracket Angle
292° CW
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Length (Centerline to Centerline) [IN]
8.63
Harmonized System (HS) Code
870830
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Gusset
Single
Country of Origin
United States
