K040423

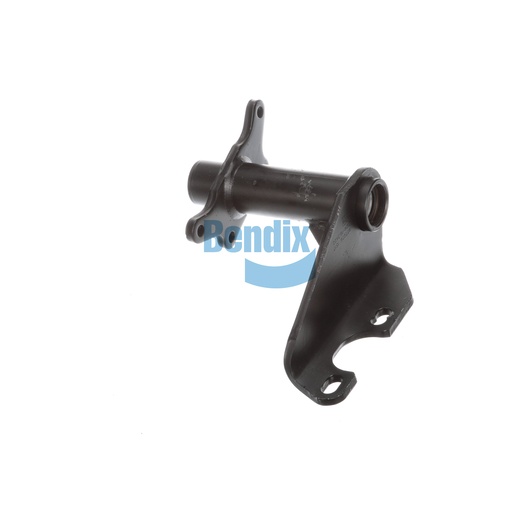

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is crucial for providing support to the air chamber and camshaft in foundation drum brakes, ensuring that your braking system performs at its best. Designed with a single gusset and durable materials, this assembly is built to withstand the rigors of heavy-duty applications, making it ideal for commercial vehicles. Its precision-engineered dimensions facilitate easy installation and reliable operation, contributing to enhanced brake responsiveness and safety. By incorporating this genuine OEM bracket into your system, you can significantly improve the performance and longevity of your braking components. Source One Parts Center is the best place to purchase genuine Bendix OEM parts for commercial vehicles, offering both quality products and knowledgeable customer service.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Camshaft Bracket Angle
108° CCW
Length (Centerline to Centerline) [IN]
11.56
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
