K041428

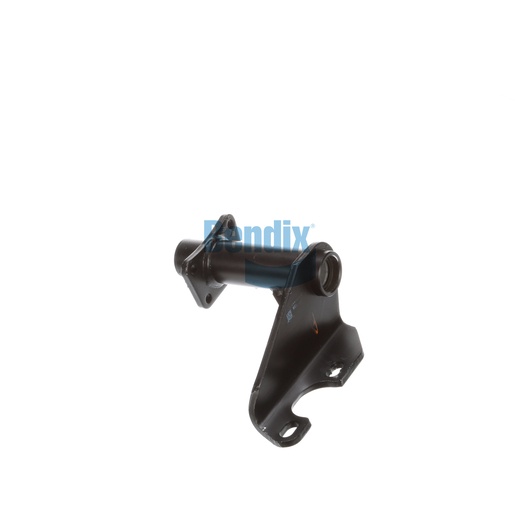

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is a crucial component that supports the functionality of drum brake systems in commercial vehicles. Crafted with precision and built to meet OEM specifications, this assembly guarantees durability and reliability in demanding conditions. Its lightweight design facilitates easy installation, making it an essential part for any maintenance or repair needs. The Bracket Assembly plays a vital role in ensuring that your braking components work effectively together, enhancing overall system performance. By choosing Source One Parts Center, you can trust that you are getting genuine Bendix OEM parts that ensure the safety and efficiency of your commercial vehicles.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
94° CCW
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.55 lb
