K041433

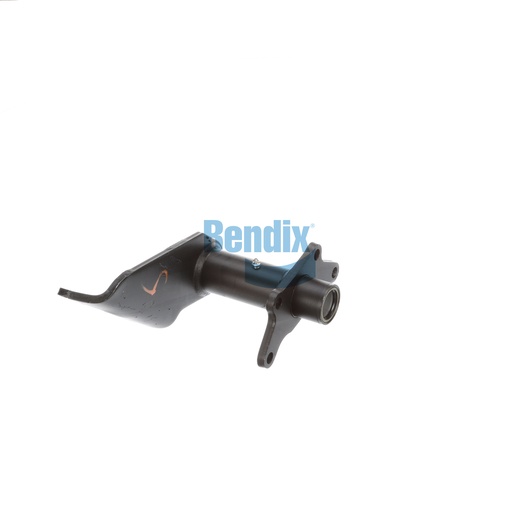

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is expertly designed to provide unwavering support for your vehicle's braking system. This assembly features a scalloped arm style and is constructed from durable materials, ensuring it can withstand the demands of heavy-duty applications. Weighing 5.1 kg, it provides the necessary strength while remaining manageable for installation. Its precision construction allows for seamless integration with other braking components, enhancing the overall effectiveness of your system. This assembly is essential for maintaining safety and performance on the road. For genuine Bendix OEM parts, Source One Parts Center is your best source, ensuring quality and reliability.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
10.56
Camshaft Bracket Angle
323° CW
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Country of Origin
United States
Weight
11.24 lb
