K041436
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

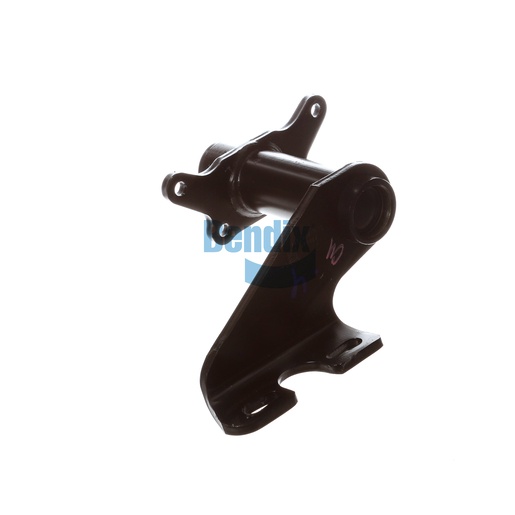

The Bracket Assembly from Bendix is a vital component for foundation drum brakes, ensuring stable and secure installation for optimal brake performance. Engineered with a scalloped arm style and a camshaft bracket angle of 90° CCW, this assembly is built for durability and reliability. With bushings made from nylon and bronze, it offers excellent resistance to wear, supporting the smooth operation of braking systems under heavy loads. Measuring 10.56 inches from centerline to centerline and weighing 11.4 pounds, this bracket is designed for easy integration into existing setups, facilitating quick repairs and maintenance. The Bracket Assembly is crucial for maintaining the integrity of your truck's braking system. For genuine Bendix OEM parts, Source One Parts Center is your best source, providing exceptional quality and service.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
10.56
Length (Slack Length)
5.50 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CCW
Outboard Bushing
Bronze
Inboard Bushing
Nylon
Arm Style
Scalloped
Country of Origin
United States
Weight
11.4 lb
