K041437

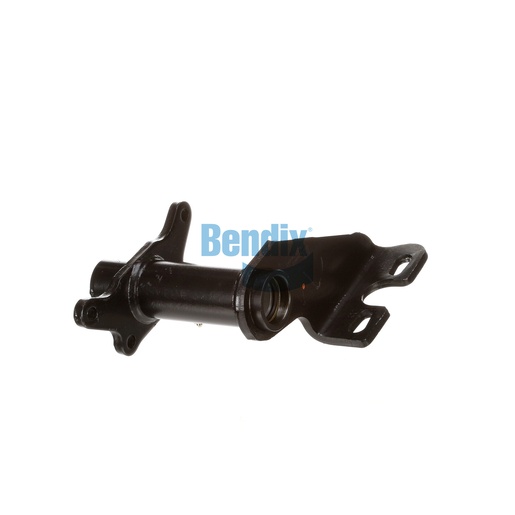

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly from Bendix is designed to provide critical support for drum brake systems in commercial vehicles. This component ensures that the braking system remains aligned and stable, which is essential for effective braking performance. Constructed with high-quality materials, this bracket assembly can withstand the rigorous demands of heavy-duty applications, ensuring long-lasting durability. Its precise engineering allows for straightforward installation, enhancing the efficiency of your vehicle's maintenance process. By opting for a genuine Bendix Bracket Assembly, you are investing in the safety and performance of your vehicle, ensuring it operates at its best. For top-quality OEM parts, Source One Parts Center is your trusted partner, delivering the reliability you need for your commercial fleet.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
10.56
Length (Slack Length)
5.50 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CW
Outboard Bushing
Bronze
Inboard Bushing
Nylon
Arm Style
Scalloped
Country of Origin
United States
Weight
11.37 lb
