K041444

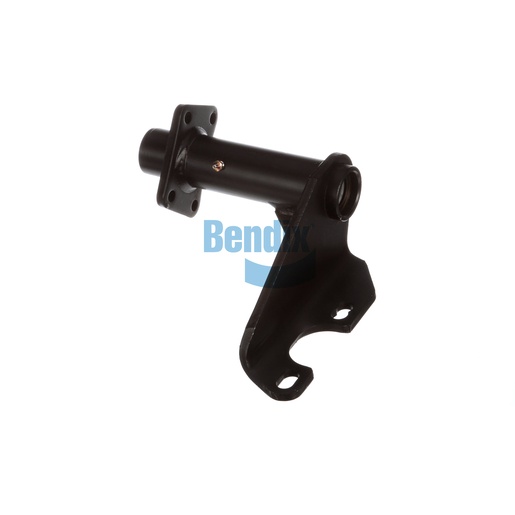

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
This Bracket Assembly is engineered for robust performance in commercial truck drum brake systems, combining strength and reliability. With a single gusset design, it provides excellent support while minimizing weight, ensuring optimal operation of brake components. The full arm style and specific mounting angles enable precise alignment, critical for effective braking. Constructed with durable nylon and bronze bushings, this bracket assembly is designed to reduce friction, enhancing the longevity of your braking system. Ideal for the demanding conditions of commercial trucking, it promises to keep your vehicle's braking system functioning flawlessly. When you purchase genuine Bendix OEM parts from Source One Parts Center, you can trust in the quality and compatibility needed for your heavy-duty applications.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
12.25
Camshaft Bracket Angle
324° CCW
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.8 lb
