K041445

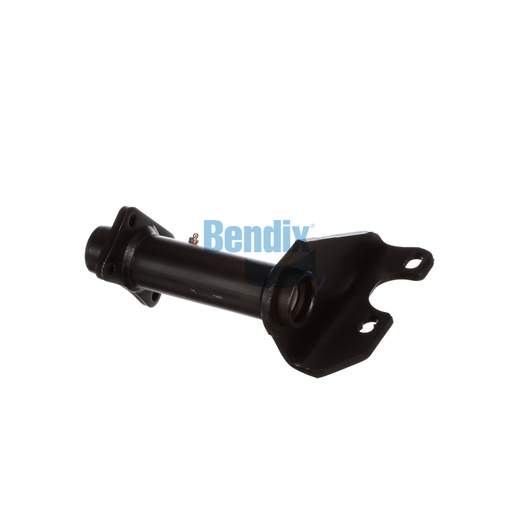

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly serves as a vital support structure for the air chamber and camshaft in foundation drum brakes, ensuring optimal functionality and safety. Designed with a gusset angle of 40° and crafted from durable materials, this assembly provides the strength needed to withstand the demands of commercial vehicle operations. The combination of nylon and bronze bushings minimizes wear and enhances performance, making it a reliable choice for fleet maintenance. This bracket assembly is essential for maintaining the integrity of your braking system, contributing to overall vehicle safety and efficiency. For those in search of authentic Bendix OEM parts, Source One Parts Center remains the premier destination, guaranteeing the quality and reliability your commercial vehicles deserve.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
12.25
Camshaft Bracket Angle
324° CW
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
13.2 lb
