K041618

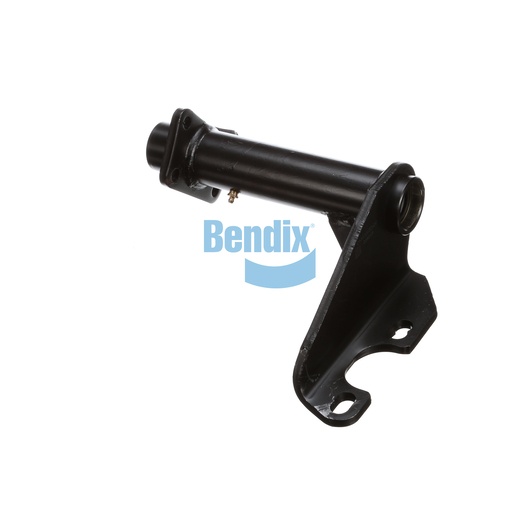

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is a critical component in maintaining the performance and safety of your commercial vehicle's braking system. Designed with a single gusset and a full arm style, it offers exceptional stability and support for air chamber and camshaft applications. The assembly features both nylon and bronze bushings, which significantly enhance durability and reduce wear over time. With a camshaft bracket angle of 46° CCW, it is engineered for optimal alignment and performance. Measuring 5.50 to 6.00 inches in slack length and 14.31 inches from centerline to centerline, this bracket fits seamlessly into your existing setup. Its reliable construction ensures that your brakes operate effectively, contributing to overall vehicle safety. When looking for genuine Bendix OEM parts, Source One Parts Center is your trusted source, providing quality and reliability for all your commercial vehicle needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
14.31
Gusset Angle
40°
Camshaft Bracket Angle
46° CCW
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
15.43 lb
