K041619
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

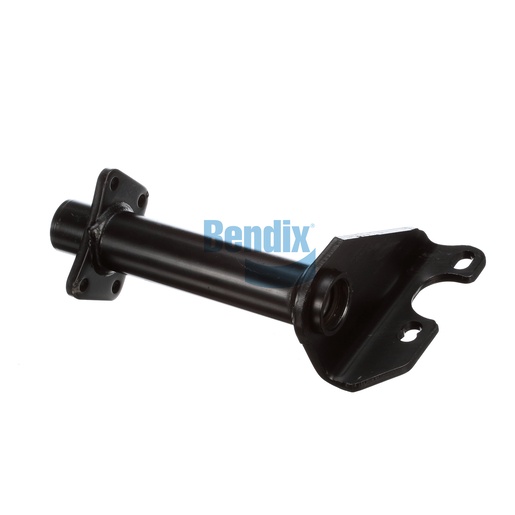

The Bracket Assembly from Bendix serves a pivotal role in supporting the braking system of commercial vehicles, enhancing both stability and performance. This assembly features a single gusset and a full arm style, designed to withstand the stresses of heavy-duty applications. With an angle of 40° and nylon bushings, it ensures smooth operation and longevity. Measuring 14.31 inches from centerline to centerline, it is compatible with various configurations, making it a versatile option for fleet operators. The assembly not only supports the air chamber and camshaft effectively but also aids in maintaining optimal braking performance. This bracket assembly is an indispensable part for any commercial truck, ensuring safety and reliability. Source One Parts Center is your go-to source for genuine Bendix OEM parts, ensuring you get the best for your vehicle.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
14.31
Gusset Angle
40°
Camshaft Bracket Angle
46° CW
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
13.6 lb
