K041624

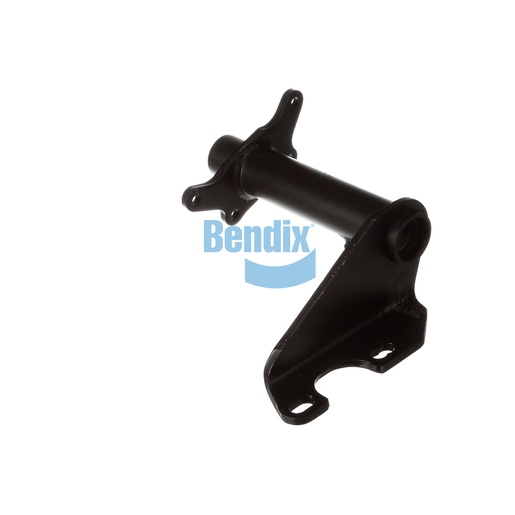

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix bracket assembly is an essential part of your vehicle's braking system, designed for maximum durability and performance. With its full arm style and robust construction, it provides the necessary support for air chambers and camshafts, ensuring reliable operation in various conditions. The assembly is crafted with high-quality materials, including nylon bushings, to minimize wear and enhance longevity. Its precise engineering allows for easy installation, making it a convenient choice for fleet maintenance. For genuine Bendix OEM parts that ensure quality and compatibility, trust Source One Parts Center for all your commercial vehicle part needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Camshaft Bracket Angle
108° CCW
Length (Centerline to Centerline) [IN]
14.31
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
14.23 lb
