K041625

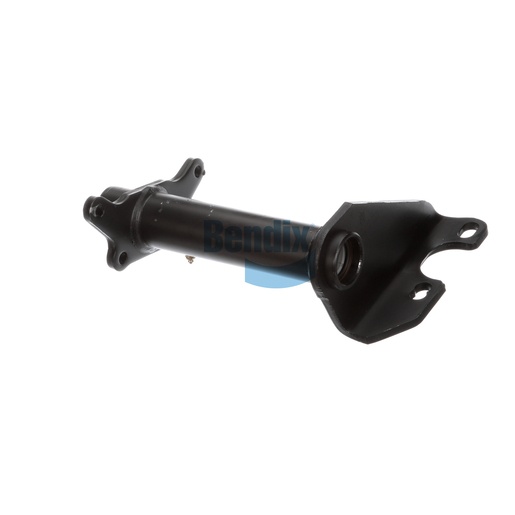

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is expertly designed to support and secure essential braking components in commercial vehicles. Made with high-strength materials and featuring a full arm style with nylon and bronze bushings, this assembly ensures durability and longevity, even under heavy use. With a precision angle of 108° CW, it provides optimal alignment for effective brake operation, reducing the risk of component failure. This bracket assembly is easy to install, making it an essential upgrade for fleet maintenance and ensuring your braking system functions at peak performance. When it comes to sourcing high-quality parts, Source One Parts Center is your trusted partner for genuine Bendix OEM components, ensuring you get the right parts to keep your fleet running smoothly.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Camshaft Bracket Angle
108° CW
Length (Centerline to Centerline) [IN]
14.31
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
14.5 lb
