K041636
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

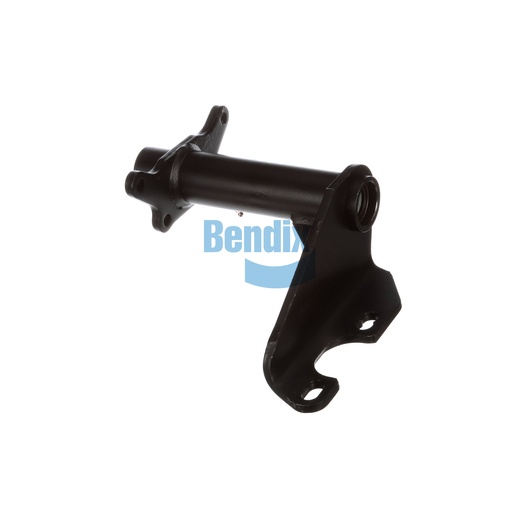

The Bendix Bracket Assembly is an essential component designed to support the effective operation of your vehicle's braking system. With a single gusset and a robust full arm style, this assembly offers enhanced structural integrity during heavy braking conditions. The nylon and bronze bushings ensure smooth movement and reduced wear over time, while the carefully calculated camshaft bracket angle of 84° CCW provides optimal alignment for precise braking action. With a length of 13.47 inches from centerline to centerline, it fits a variety of truck models and configurations, making it a versatile choice for fleet managers. Weighing in at 6.3 kg, this durable assembly is engineered to withstand the rigors of commercial use. Manufactured in the United States, this bracket assembly adheres to strict quality standards. For those seeking reliable Bendix OEM parts, Source One Parts Center is the best destination, ensuring you receive genuine components tailored for performance.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.47
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
84° CCW
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
13.91 lb
