DESCRIPTION

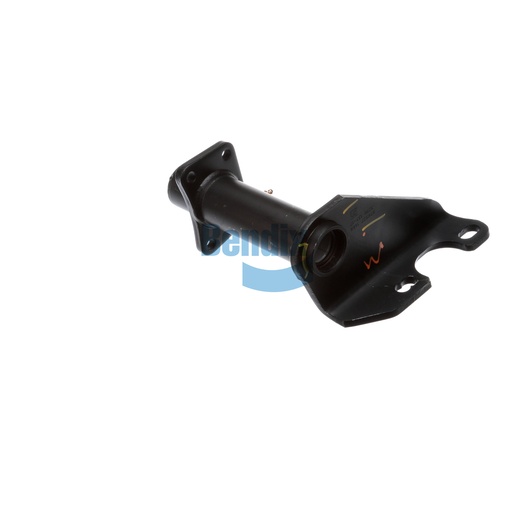

The Bendix bracket assembly is an essential component for your foundation drum brakes, designed to provide robust support and stability during operation. With its single gusset and durable construction, this assembly ensures your brakes function effectively under heavy loads. Measuring between 5.50 and 6.00 inches in slack length, it is adaptable for various configurations, making it an ideal choice for commercial vehicles. This high-quality bracket enhances the overall performance and reliability of your braking system, contributing to safer driving. For all your Bendix OEM parts, Source One Parts Center stands out as the best choice, offering genuine products that meet the highest standards of quality.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Camshaft Bracket Angle
354° CW
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.25 lb
