K041845

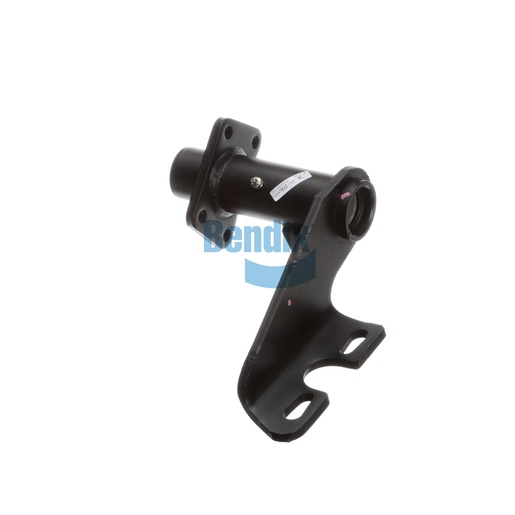

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is designed to provide essential support and stability for your drum brake system, ensuring effective performance in commercial vehicles. Built with a single gusset and scalloped arm style, this assembly enhances strength while minimizing weight, making it ideal for heavy-duty applications. The precise angles and bushings used in the assembly help reduce wear and enhance the overall efficiency of the braking system. Designed to withstand the rigors of the road, this bracket assembly is crucial for maintaining the integrity of your vehicle's braking capabilities. For high-quality performance, trust Source One Parts Center to provide you with genuine Bendix OEM parts that meet your needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
10.56
Camshaft Bracket Angle
310° CCW
Gusset Angle
40°
Length (Slack Length)
5.50 IN
Harmonized System (HS) Code
870830
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Gusset
Single
Country of Origin
United States
Weight
8 lb
