K043160

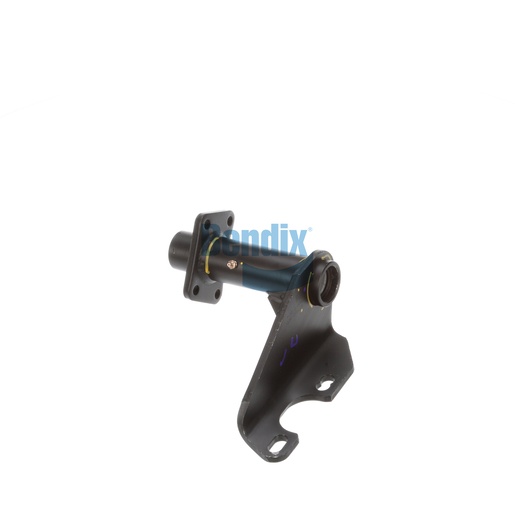

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
This Bracket Assembly is expertly crafted to provide reliable support for foundation drum brakes in commercial vehicles. With its full arm style and dual nylon bushings, it minimizes wear and tear, ensuring long-lasting performance even under heavy loads. The carefully designed gusset angle of 325° CCW allows for precise installation and alignment, enhancing the overall functionality of the brake system. This assembly is crucial for ensuring that the brakes operate efficiently and effectively, making it an essential component for fleet maintenance. For those dedicated to maintaining high safety standards, replacing worn brackets with this genuine Bendix product is a smart choice. Source One Parts Center is your trusted partner for authentic Bendix OEM parts, offering quality you can count on.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Camshaft Bracket Angle
325° CCW
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.3 lb
