K043161
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

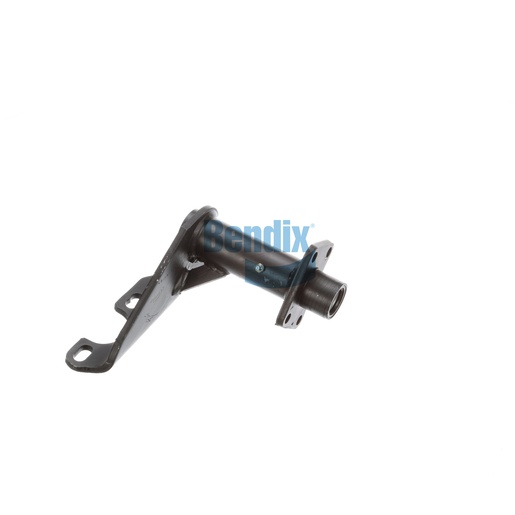

The Bracket Assembly from Bendix is designed for foundation drum brakes, providing reliable support and alignment for optimal braking performance. With a full arm style and a camshaft bracket angle of 325° CW, this assembly is built for durability and strength. Crafted with nylon bushings, it minimizes wear and enhances the longevity of the braking system. Measuring 11.56 inches from centerline to centerline and weighing 12.59 pounds, this bracket offers a robust solution for heavy-duty applications. Its design allows for straightforward installation, facilitating quick repairs. For genuine Bendix OEM parts, Source One Parts Center is the best source for quality and reliability in your commercial vehicle needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Camshaft Bracket Angle
325° CW
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.59 lb
