K043182
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

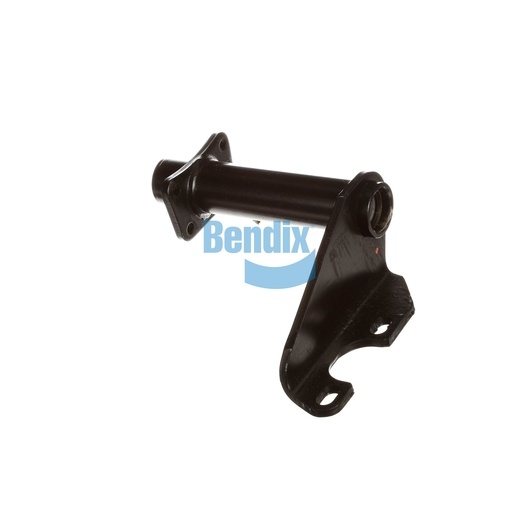

The Bracket Assembly from Bendix is a crucial component for foundation drum brakes, providing essential support for air chambers and camshafts. Designed with a full arm style and durable construction, this assembly ensures stability and reliability during operation. The use of nylon bushings minimizes wear, contributing to the longevity of your braking system. Its precise dimensions facilitate easy installation, allowing for enhanced performance without compromising on safety. This bracket assembly is vital for maintaining effective braking in commercial vehicles. For high-quality Bendix OEM parts, Source One Parts Center is your best option, delivering dependable solutions for your fleet.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.47
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CCW
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
13.5 lb
