K043528

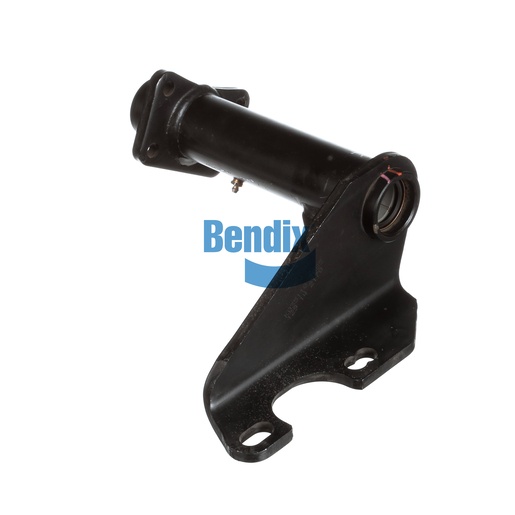

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly from Bendix is designed to provide exceptional support for foundation drum brakes, ensuring optimal performance in commercial vehicles. This assembly features a durable construction with a single gusset and nylon bushings, offering resilience under heavy loads. With a camshaft bracket angle of 56° CCW and a slack length ranging from 5.50 inches to 6.00 inches, it is engineered for versatility and compatibility with various braking systems. Weighing 6.0 kg, this assembly is robust yet lightweight, making it a dependable choice for truck operators. Manufactured in the United States, it meets high standards of quality and performance. For reliable purchasing of genuine Bendix parts, Source One Parts Center is the best choice, committed to providing top-notch service.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.47
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
56° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
13.19 lb
