$389.95
$467.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

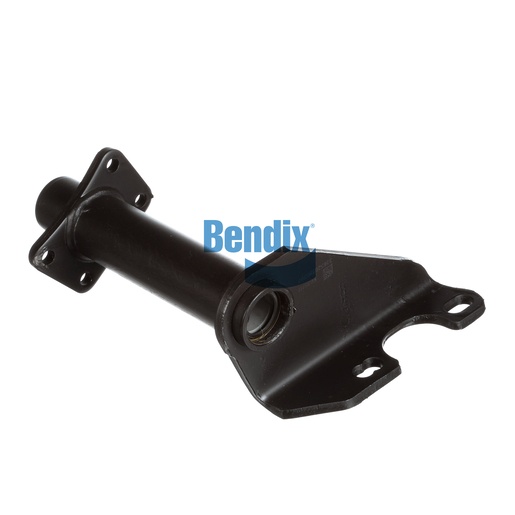

The Bracket Assembly from Bendix is a vital support component for your vehicle's foundation drum brakes. Engineered for durability and strength, this assembly features a full arm style and single gusset design, ensuring it can withstand the demands of heavy-duty applications. The nylon bushings contribute to its longevity and resilience, while its precise dimensions guarantee a perfect fit. With a camshaft bracket angle of 56° CW, it enhances the accuracy of your braking system. For those looking for genuine Bendix OEM parts, Source One Parts Center is your go-to source, ensuring high quality and reliable performance.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.47
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
56° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
13.3 lb
