K043531

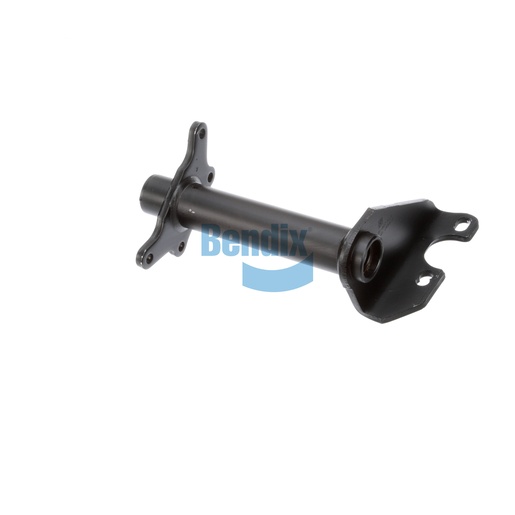

Bracket Assembly
Bendix
AVAILABLE
3 are currently available
Ships within 11-13 business days
$379.95
$455.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is an essential component in the brake system, engineered to provide reliable support and functionality for commercial vehicles. With features such as a full arm style and durable nylon bushings, this assembly is built to withstand the demands of heavy-duty applications. Its precise design ensures easy installation and alignment, which is critical for maintaining optimal braking performance. Investing in this bracket assembly enhances your vehicle's braking system, contributing to overall safety on the road. For genuine Bendix OEM parts, Source One Parts Center is your trusted supplier, ensuring you receive high-quality components that deliver exceptional performance.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
15.25
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
56° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
14.5 lb
