K043926

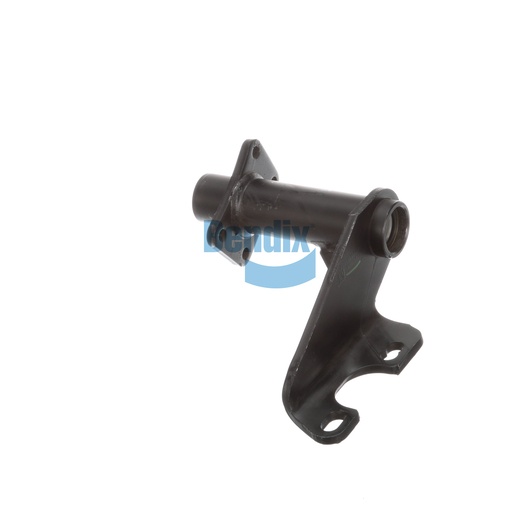

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Enhance the performance of your commercial vehicle with the Bendix Bracket Assembly, a crucial component for the effective operation of your braking system. This assembly features a scalloped arm style and a single gusset that provides exceptional strength and support. Made with high-quality nylon bushings, it ensures durability and smooth operation, which minimizes maintenance needs. With a camshaft bracket angle of 120° CCW, this assembly facilitates precise alignment, making installation straightforward and efficient. Ideal for both air chambers and camshafts, this bracket assembly is essential for maintaining the integrity of your braking system. Source One Parts Center is the premier provider of Bendix OEM parts, ensuring you receive the best quality for your commercial vehicle.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Camshaft Bracket Angle
120° CCW
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Gusset
Single
Country of Origin
United States
Weight
11.5 lb
