K044330

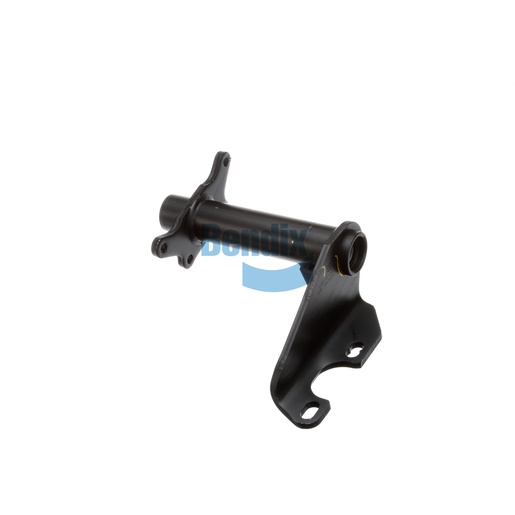

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is an essential support mechanism in the foundation drum brake system, designed to provide stability and strength under heavy loads. Constructed from durable materials, this assembly ensures that all components remain securely in place, contributing to the overall efficiency of the braking system. With a net weight of 5.0 kg, it is engineered to withstand the demanding conditions faced by commercial vehicles. This bracket assembly not only facilitates proper alignment of brake parts but also enhances the safety and reliability of the braking system. Choosing Source One Parts Center for your purchase guarantees that you are getting genuine Bendix OEM parts, which are vital for maintaining the highest performance levels for your truck.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Camshaft Bracket Angle
100° CCW
Length (Centerline to Centerline) [IN]
14.31
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
11.01 lb
