K044331

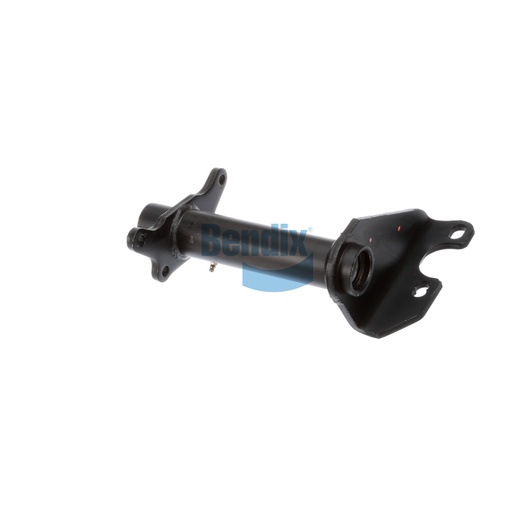

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is engineered to provide structural integrity and support for your commercial vehicle’s foundation drum brakes. Made with high-quality materials, this assembly features a full arm style and is designed to withstand the harshest operating conditions. With its adjustable length and precise camshaft bracket angle, it ensures an exact fit and reliable performance. This component is crucial for maintaining proper brake function, which is essential for safety and efficiency on the road. Whether you are upgrading your braking system or performing routine maintenance, this bracket assembly is a necessity for optimal performance. For sourcing genuine Bendix parts, Source One Parts Center is the trusted choice, committed to delivering quality and reliability for commercial vehicles.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Camshaft Bracket Angle
100° CW
Length (Centerline to Centerline) [IN]
14.31
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
11.01 lb
