$389.95
$467.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

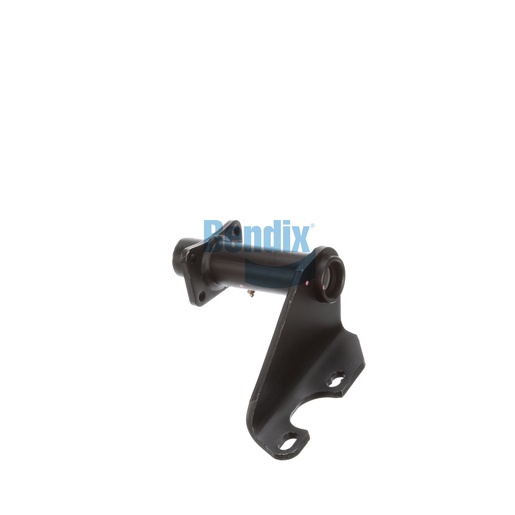

The Bendix Bracket Assembly is expertly designed to provide essential support for your foundation drum brakes, enhancing their performance and stability. Constructed with high-quality materials, this assembly features a full arm style and durable nylon bushings that ensure long-lasting performance under heavy-duty conditions. Its thoughtful design facilitates easy installation, allowing for quick replacements and minimal downtime. Weighing 5.4 kg (11.97 lb), it strikes an ideal balance between strength and efficiency, making it a reliable choice for maintaining your vehicle’s braking system. When it comes to purchasing genuine Bendix parts, Source One Parts Center is your top choice, providing quality products and exceptional customer service.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
78° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
11.97 lb
