$309.95
$371.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

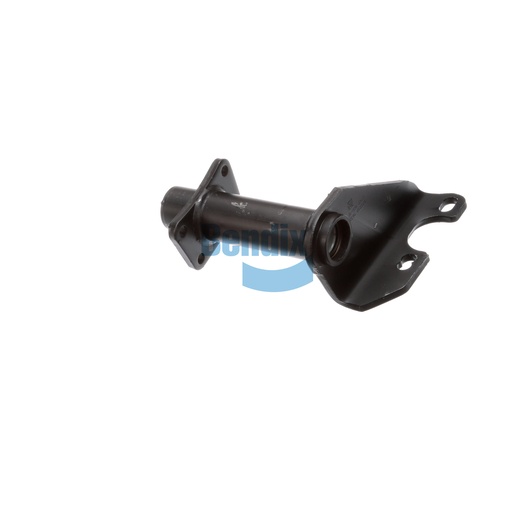

The Bracket Assembly is a critical component for ensuring the stability and efficiency of your vehicle's braking system. Designed with full arm style and quality nylon bushings, this bracket provides robust support for air chambers and camshafts, essential for the proper functioning of drum brakes. With a length of 11.56 inches, it allows for precise installation, optimizing brake performance. This assembly is built to withstand the demands of heavy-duty applications, contributing to the overall safety and reliability of your commercial vehicle. Properly maintained brackets minimize wear on other brake components, promoting longevity and reducing costly repairs. Source One Parts Center is the top destination for genuine Bendix OEM parts, ensuring quality and exceptional service.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
78° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
11.99 lb
