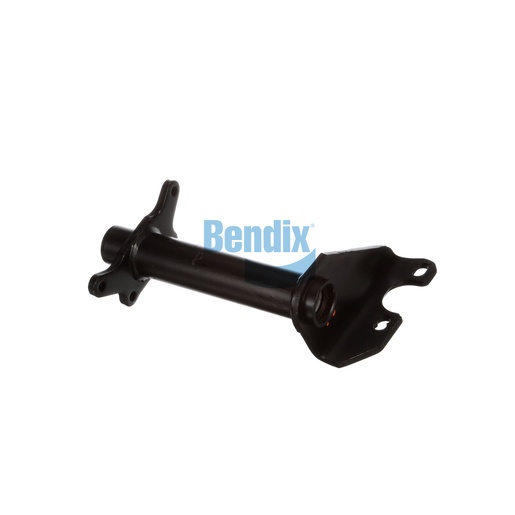

K046465
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Bendix Bracket Assemblies are essential for maintaining the integrity of your truck's braking system, providing the support needed for optimal performance. These assemblies are made with high-strength materials that ensure durability and reliability, even in the most demanding conditions. Designed for easy installation, they help reduce maintenance time and improve overall efficiency. Each bracket is meticulously constructed to enhance the stability and functionality of the braking system, contributing to safer driving experiences. For those looking for genuine Bendix OEM parts, Source One Parts Center stands out as the best option, offering quality components that ensure your vehicles remain in top condition.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
15.25
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
80° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
14.85 lb
