K050561

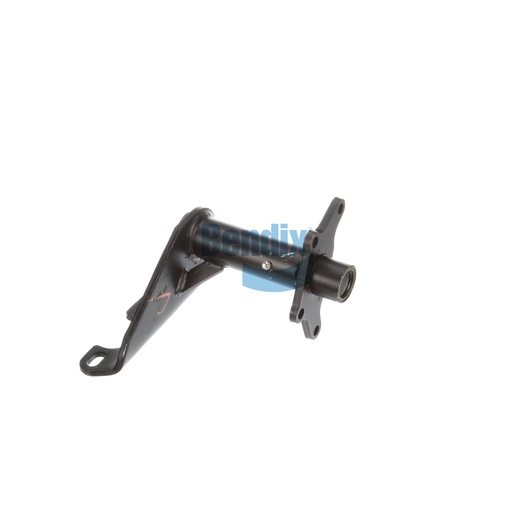

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is a crucial component designed to support the drum brake system of your commercial vehicle. Engineered with a full arm style and a single gusset, this assembly provides stability and durability, ensuring reliable braking performance under various load conditions. Constructed with high-quality nylon bushings, it reduces friction and wear, contributing to the longevity of your braking components. With a slack length of 5.50 to 6.00 inches, it is versatile enough to fit a range of configurations. Weighing 6.2 kg, this bracket assembly strikes a balance between strength and lightweight design, making it ideal for heavy-duty applications. Proudly manufactured in the USA, it adheres to strict quality standards. For those committed to maintaining their vehicles with the best components, Source One Parts Center is the leading choice for genuine Bendix OEM parts that ensure your truck operates safely and efficiently.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
12.50
Camshaft Bracket Angle
335° CW
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
13.65 lb
