K050564

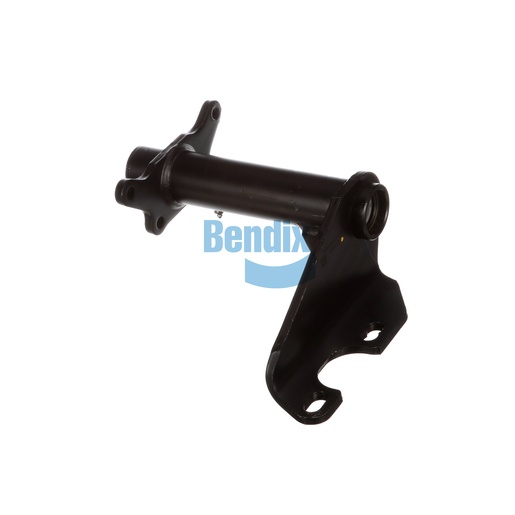

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is an essential part of your vehicle's foundation drum brakes, designed to ensure optimal performance and reliability. Constructed with a full arm style and featuring durable nylon bushings, this assembly provides a secure fit that withstands the rigors of heavy-duty use. With a length adjustable from 5.50 inches to 6.00 inches and a camshaft bracket angle of 90° CCW, it is versatile enough to meet the needs of various applications. This bracket assembly enhances the overall braking system, contributing to efficient performance and reduced maintenance costs. Ideal for fleet operators and individual owners alike, investing in this assembly ensures your vehicle maintains its stopping power and safety. For high-quality Bendix OEM parts, Source One Parts Center is your best source, offering the right parts with unmatched service.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
14.31
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CCW
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
14.33 lb
