$509.95
$611.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

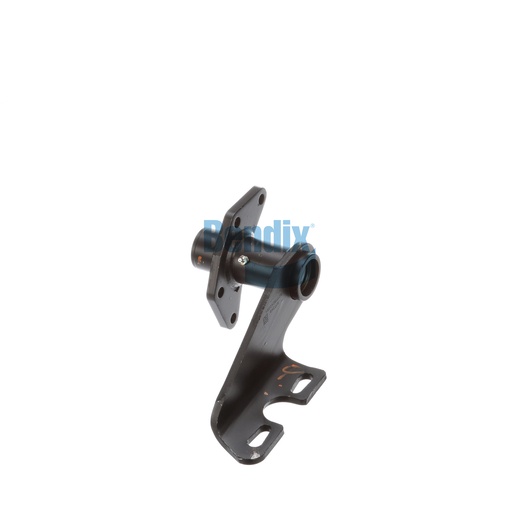

The Bracket Assembly is an essential component that supports your vehicle's braking system, designed for optimal performance and durability. Featuring a scalloped arm style and nylon bushings, this assembly offers robust support for air chambers and camshafts, ensuring reliability under heavy-duty conditions. Its precise length of 8.43 inches allows for effective alignment, critical for maintaining brake efficiency. By investing in this high-quality bracket assembly, you enhance the longevity of your braking system while reducing maintenance costs. This part is designed to withstand rigorous use, making it a practical choice for fleet operators and truck drivers. Source One Parts Center is the leading provider of genuine Bendix OEM parts, ensuring you receive the best quality and service.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Camshaft Bracket Angle
324° CCW
Length (Slack Length)
5.50 IN
Length (Centerline to Centerline) [IN]
8.43
Harmonized System (HS) Code
870830
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Country of Origin
United States
Weight
9.9 lb
