$509.95
$611.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

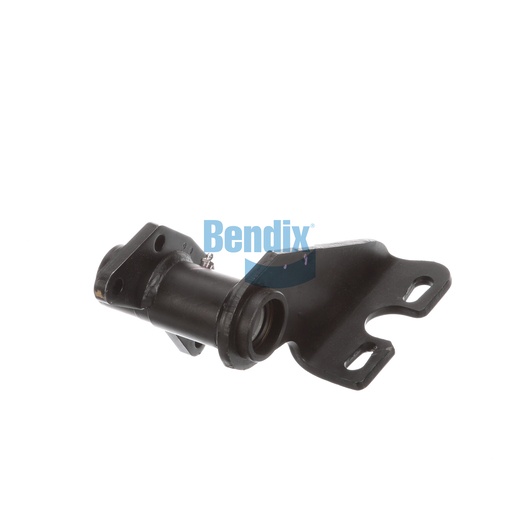

The Bendix Bracket Assembly is crafted for heavy-duty applications in commercial vehicles, providing essential support for air chambers and camshafts. This assembly features a scalloped arm style and nylon bushings, designed to minimize wear and ensure smooth operation even under high stress. The bracket's camshaft angle of 324° CW promotes optimal alignment, enhancing the overall efficiency of the brake system. With a slack length of 5.50 inches, it is versatile enough to fit a variety of truck models, making it an ideal choice for fleet maintenance. The assembly's durability and precision engineering make it a crucial component for maintaining vehicle safety and performance. For obtaining genuine Bendix OEM parts, Source One Parts Center is your trusted partner, offering a wide selection of high-quality replacements.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Camshaft Bracket Angle
324° CW
Length (Slack Length)
5.50 IN
Length (Centerline to Centerline) [IN]
8.43
Harmonized System (HS) Code
870830
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Country of Origin
United States
Weight
9.85 lb
