K053618

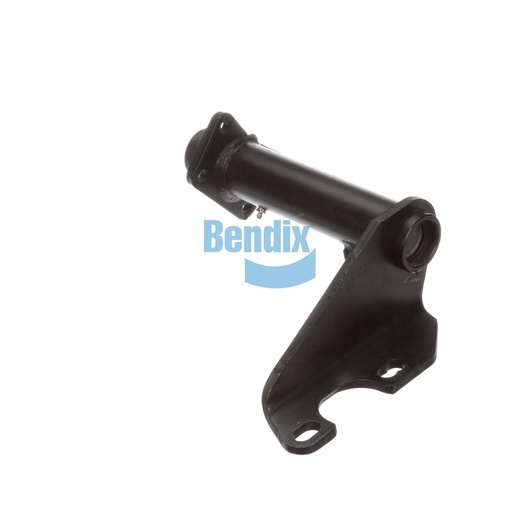

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is designed specifically for use in the foundation drum brakes of commercial vehicles, providing essential support and stability. Featuring a single gusset and full arm style, this assembly is built to withstand the rigors of heavy-duty applications. The nylon bushings reduce friction and enhance durability, ensuring that the braking system performs optimally. With a camshaft bracket angle of 40° CCW, it allows for precise alignment and easy installation, making maintenance tasks more efficient. For fleet operators, investing in this bracket assembly is vital for ensuring safety and reliability on the road. Source One Parts Center is your best choice for genuine Bendix OEM parts, where quality and performance are guaranteed.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
14.31
Gusset Angle
40°
Camshaft Bracket Angle
40° CCW
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.53 lb
