K057846

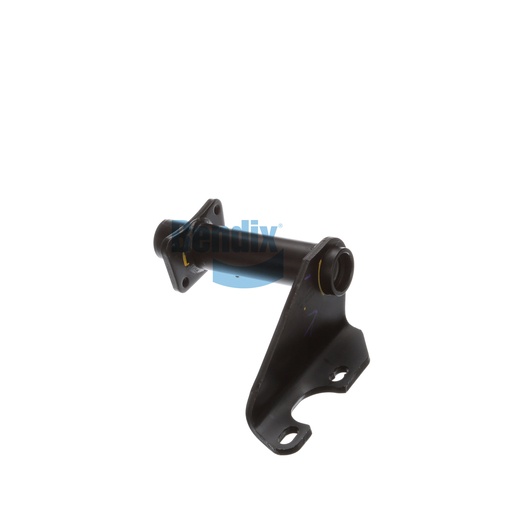

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is an integral component designed for Bendix foundation drum brakes, offering critical support for effective braking performance in commercial vehicles. This assembly is constructed with a full arm style and features durable nylon bushings, ensuring longevity and reliability. With a slack length adjustable between 5.50 inches to 6.00 inches, it accommodates various installations, while the camshaft bracket angle of 90° CCW ensures precise alignment. Weighing 5.9 kg (13.0 lb), it provides strength without compromising ease of handling. Source One Parts Center is the premier destination for genuine Bendix OEM parts, ensuring that your commercial vehicle's braking system operates at its best.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.00
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CCW
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
13 lb
