K057847

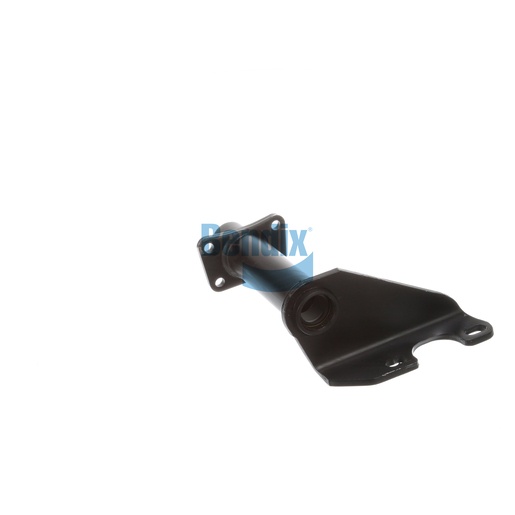

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is a crucial component designed for foundation drum brakes, providing robust support and stability to various braking systems. Constructed with high-quality materials, this bracket features a single gusset and full arm style, ensuring durability and strength during operation. The nylon bushings enhance performance by reducing friction and wear, while its specific dimensions, including a length between 5.50 and 6.00 inches, allow for precise fitting within the brake assembly. With a camshaft bracket angle of 90° CW, this part is engineered for optimal alignment and functionality, contributing to the overall efficiency of the braking system. Ideal for heavy-duty applications, the Bendix Bracket Assembly offers peace of mind with its proven reliability and performance under pressure. When purchasing genuine Bendix OEM parts, Source One Parts Center stands out as the best option, ensuring you receive only the highest quality components for your commercial vehicles.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.00
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CW
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.98 lb
