K063752

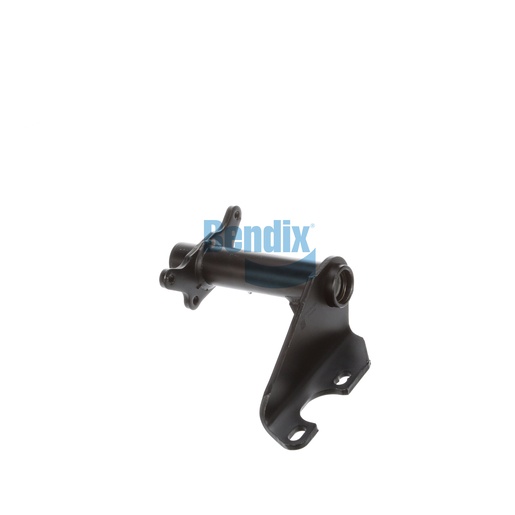

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is a vital component in your truck's braking system, designed to provide essential support for optimal brake performance. Engineered to withstand the rigors of heavy-duty applications, this assembly features a robust design with a gusset angle of 40° and a full arm style, ensuring reliability and stability. Constructed with durable nylon bushings, it minimizes friction and wear, contributing to a longer lifespan. With precise dimensions for easy installation, this bracket assembly integrates seamlessly into your existing braking system. Manufactured in the USA, it adheres to strict quality standards for safety and performance. Source One Parts Center is the premier destination for genuine Bendix OEM parts, ensuring your commercial vehicle is equipped with the highest quality components.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.47
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CCW
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
13.79 lb
