K063753

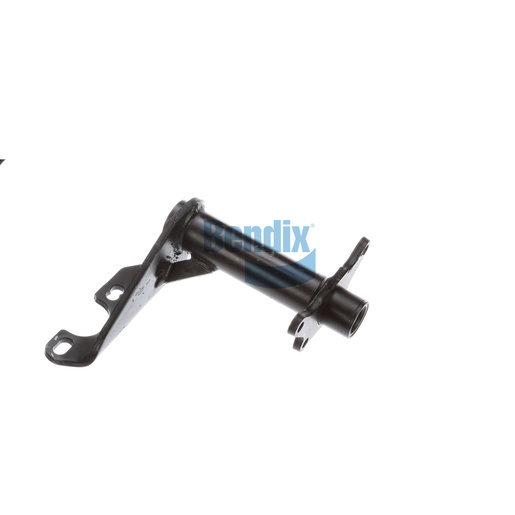

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is a robust and essential component for your truck's drum brake system, offering reliable support for camshafts and air chambers. With a single gusset design and nylon bushings, this assembly ensures high durability and stability even under heavy loads. It features optimal dimensions for slack length and a camshaft bracket angle of 90° clockwise, providing precise alignment and easy installation. This bracket assembly is built to withstand the rigors of commercial vehicle applications, maintaining the integrity of your braking system. By choosing this genuine Bendix part, you are ensuring that your vehicle operates at peak performance and safety. For all your Bendix needs, Source One Parts Center is the trusted source for authentic OEM parts, ensuring quality and reliability.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.47
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CW
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
13.68 lb
