K063932

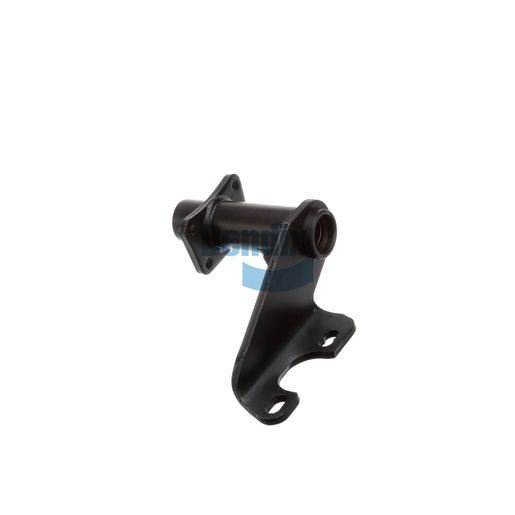

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is an essential component that supports your vehicle's braking system by securing the air chamber and camshaft in place. Designed with a single gusset and scalloped arm style, this assembly offers a robust solution for sustaining heavy-duty operations. Utilizing bronze bushings, it ensures durability and enhances performance under stress, making it ideal for commercial vehicles. Weighing 5.2 kg, it allows for quick and easy installation, minimizing downtime during repairs. Trust Bendix for high-quality braking solutions, and rely on Source One Parts Center for your genuine OEM parts.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
10.56
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CCW
Inboard Bushing
Bronze
Outboard Bushing
Bronze
Arm Style
Scalloped
Gusset
Single
Country of Origin
United States
Weight
11.5 lb
