K063933

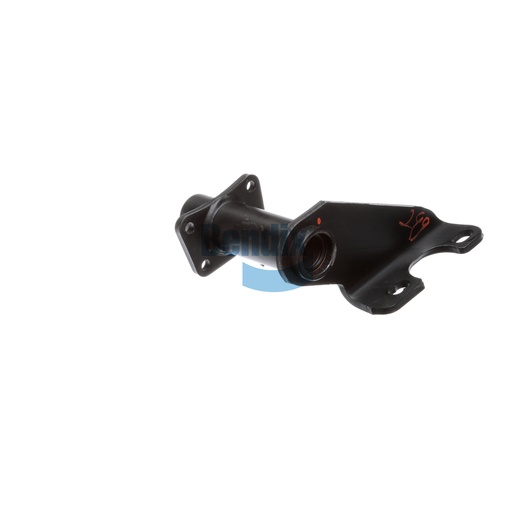

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly serves as a fundamental support structure for your vehicle's air chamber and camshaft, crucial for the effective operation of the braking system. With a single gusset design and scalloped arm style, this assembly is constructed from durable materials to resist wear and tear, ensuring long-lasting performance. Weighing 5.2 kg, it is designed for easy installation and adjustment, making it an essential component for maintenance and repair. The use of bronze bushings further enhances its durability, allowing it to perform efficiently under heavy loads. Choose Bendix for reliable braking solutions, and trust Source One Parts Center for all your genuine parts needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
10.56
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CW
Inboard Bushing
Bronze
Outboard Bushing
Bronze
Arm Style
Scalloped
Gusset
Single
Country of Origin
United States
Weight
11.5 lb
