K064852

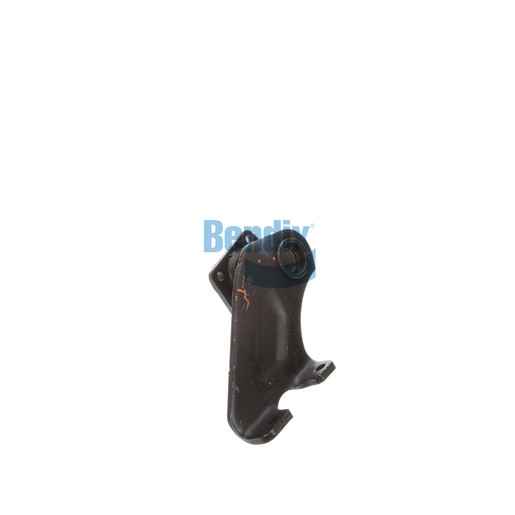

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is expertly crafted to provide essential support for air chambers and camshafts in commercial truck braking systems. Made in the United States, this durable bracket is designed to withstand the harsh conditions encountered in heavy-duty applications. Its robust construction, featuring nylon bushings, ensures reduced wear and extended service life, making it an ideal choice for maintaining your vehicle's braking performance. The bracket plays a vital role in aligning brake components, which is crucial for ensuring effective braking action. By choosing this quality bracket, you are investing in the safety and reliability of your vehicle's braking system. Source One Parts Center is the ultimate destination for genuine Bendix OEM parts, guaranteeing you receive top-notch products for your commercial vehicle.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Camshaft Bracket Angle
278° CCW
Gusset Angle
53°
Length (Slack Length)
6.00 IN
Length (Centerline to Centerline) [IN]
8.63
Harmonized System (HS) Code
870830
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Gusset
Single
Country of Origin
United States
Weight
12.8 lb
