K064853

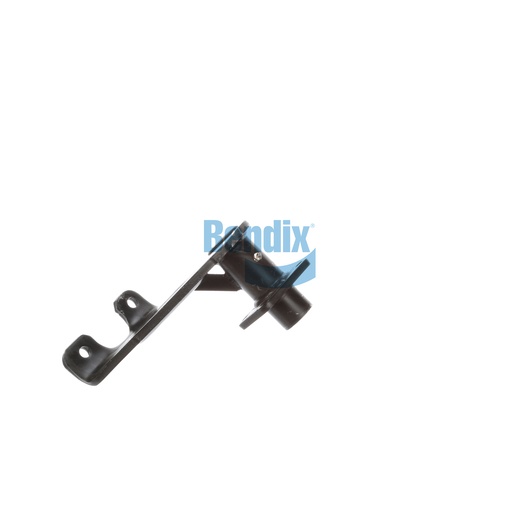

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly from Bendix is a vital component designed to provide exceptional support and performance in the braking systems of commercial vehicles. This assembly features a scalloped arm style and is constructed with high-quality materials to withstand heavy loads and harsh conditions. With a gusset angle of 53° and nylon bushings, it ensures optimal functionality and longevity, making it an essential choice for fleet operators. Its design allows for straightforward installation, enabling quick repairs and maintenance to keep vehicles running efficiently. By investing in this Bracket Assembly, you're ensuring that your braking system operates at peak performance. For sourcing genuine Bendix OEM parts, look no further than Source One Parts Center, where quality and reliability meet.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Camshaft Bracket Angle
278° CW
Gusset Angle
53°
Length (Slack Length)
6.00 IN
Length (Centerline to Centerline) [IN]
8.63
Harmonized System (HS) Code
870830
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Gusset
Single
Country of Origin
United States
Weight
13.08 lb
