K065401

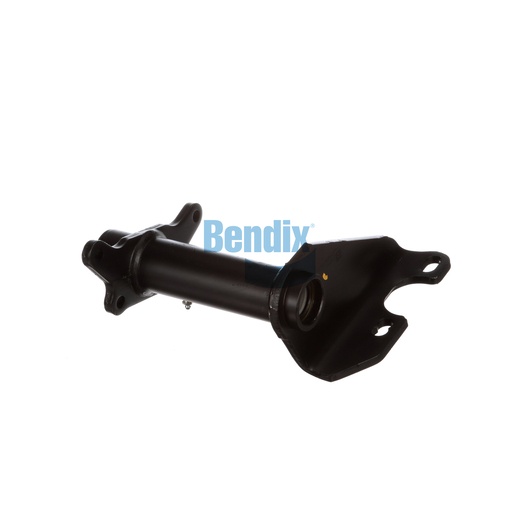

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is an integral part of the foundation drum brake system in commercial trucks, providing essential support and alignment for brake components. Made from high-strength materials, this assembly is designed to withstand the rigors of heavy-duty use while maintaining structural integrity. Weighing 5.9 kg, it features nylon bushings that minimize wear and enhance performance. The precise design allows for seamless integration with other brake system components, ensuring efficient operation and improved safety. This bracket assembly is ideal for those looking to maintain or enhance their vehicle's braking performance. When you choose Source One Parts Center, you can trust that you are purchasing genuine Bendix OEM parts, ensuring the highest quality and compatibility for your truck.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Camshaft Bracket Angle
111° CW
Length (Centerline to Centerline) [IN]
12.50
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
13.05 lb
