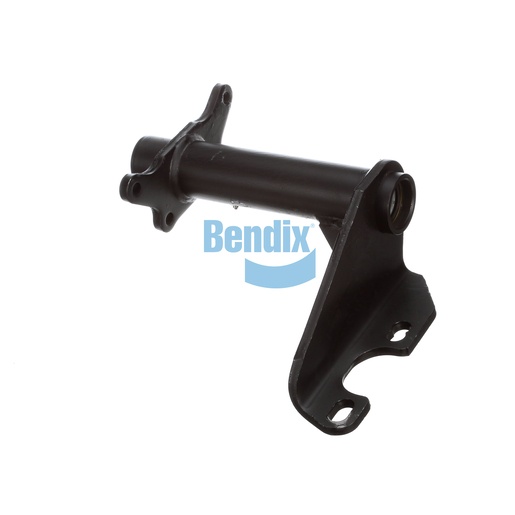

K083258
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is designed to provide exceptional support and stability for your truck's drum brake system, ensuring optimal performance and safety. Manufactured in the United States, this component features a full arm style with a single gusset, which enhances its structural integrity. The nylon bushings included in this assembly provide excellent wear resistance, reducing the frequency of replacements and repairs. With a slack length range of 5.50 to 6.00 inches and a camshaft bracket angle of 90° CCW, it is tailored for compatibility with a variety of commercial vehicles. This bracket assembly not only plays a crucial role in performance but also adheres to the strictest standards of quality and durability. At Source One Parts Center, we pride ourselves on offering authentic Bendix OEM parts that ensure your vehicle operates at its best.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
14.31
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CCW
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
14.25 lb
