K083259

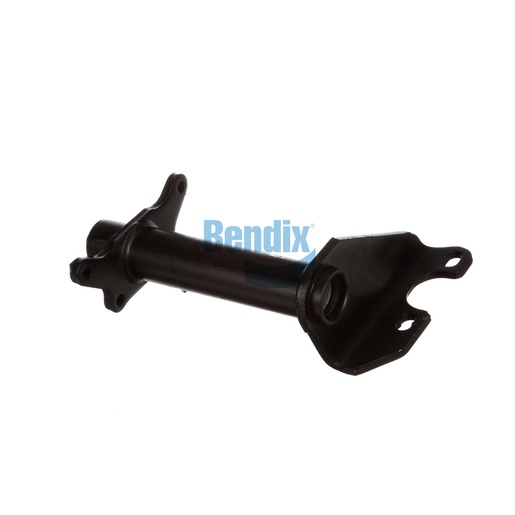

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly from Bendix is engineered to provide essential support and stability for foundation drum brakes, crucial for maintaining optimal braking performance in commercial vehicles. With a single gusset design and a full arm style, it ensures strength and durability under demanding conditions. Constructed from high-quality nylon and bronze bushings, this assembly minimizes wear and enhances longevity, making it an ideal choice for heavy-duty applications. Its adjustable slack length and precise dimensions allow for easy installation and compatibility with various brake systems. For your genuine Bendix OEM parts, Source One Parts Center is your reliable source for quality and service.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
14.31
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CW
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
14.25 lb
